Eco-Worthy 10000W Solar Off-grid AIO Inverter, 48Vdc to 230Vac with 11000W@500V PV Input
10000W Solar Off-grid AIO Inverter | 48Vdc to 230Vac | 11000W@500V PV Input
| Model | Specifications | Adjustable |
| Inverter Output | ||
| Rated Output Power | 10000 W | |
| Max. Peak Power | 20000 W | |
| Rated Output Voltage | 230Vac (Single Phase) | Y |
| Load Capacity of Motors | 6HP | |
| Rated AC Frequency | 50/60Hz | Y |
| Waveform | Pure Sine Wave | |
| Switch Time | 10ms (Typical) | |

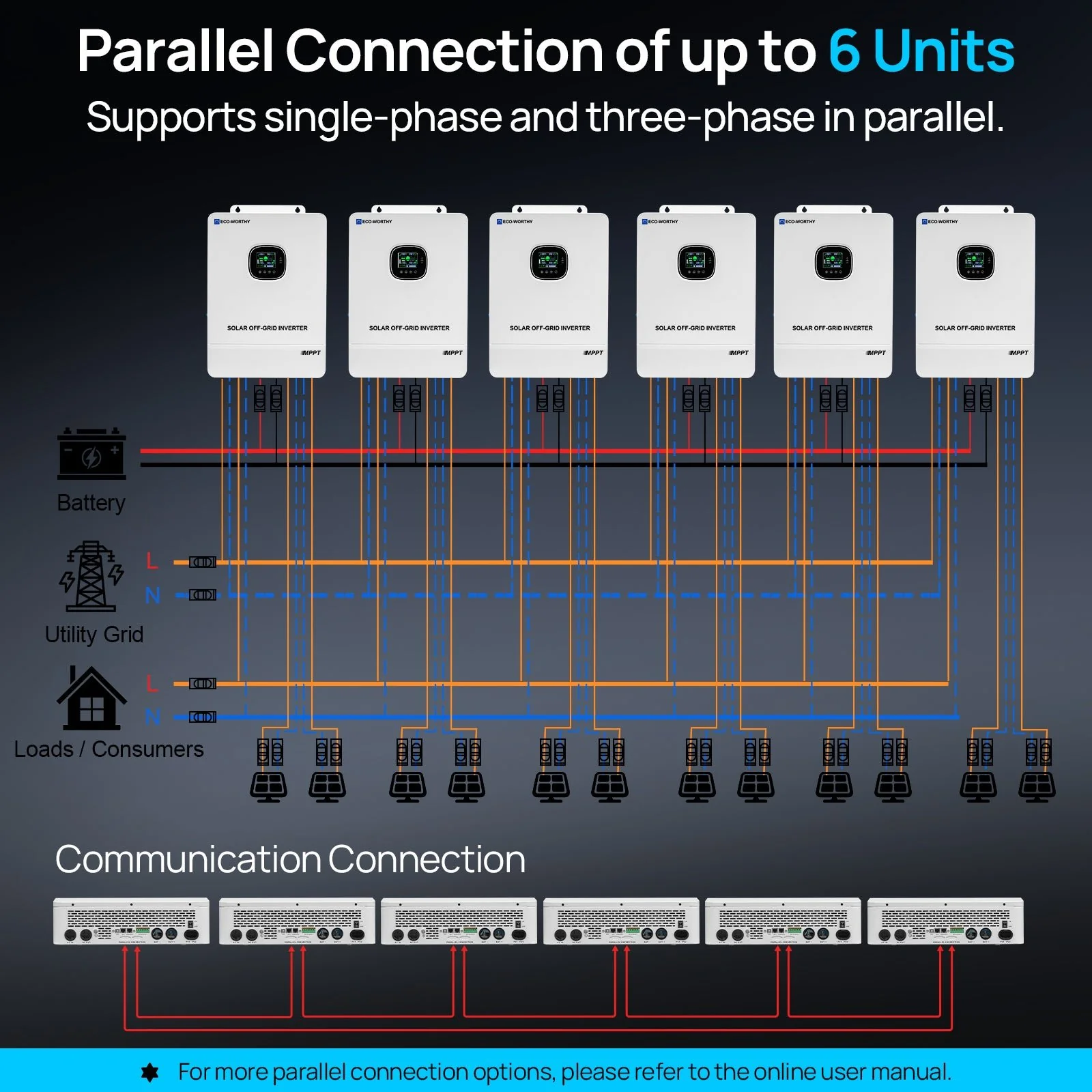

| Parallel Capacity | 1-6 Units | |
| Overload Protection | After overload protection is triggered, the inverter will restart after 3 minutes. Five consecutive overloads will shut down the output until the inverter is restarted. (102% < Load < 110%) ± 10%: Fault and output shutdown after 5 minutes; (110% < Load < 125%) ± 10%: Fault and output shutdown after 10 seconds. Load > 125% ± 10%: Fault alarm and output shutdown after 5 seconds. |
|
| Battery | ||

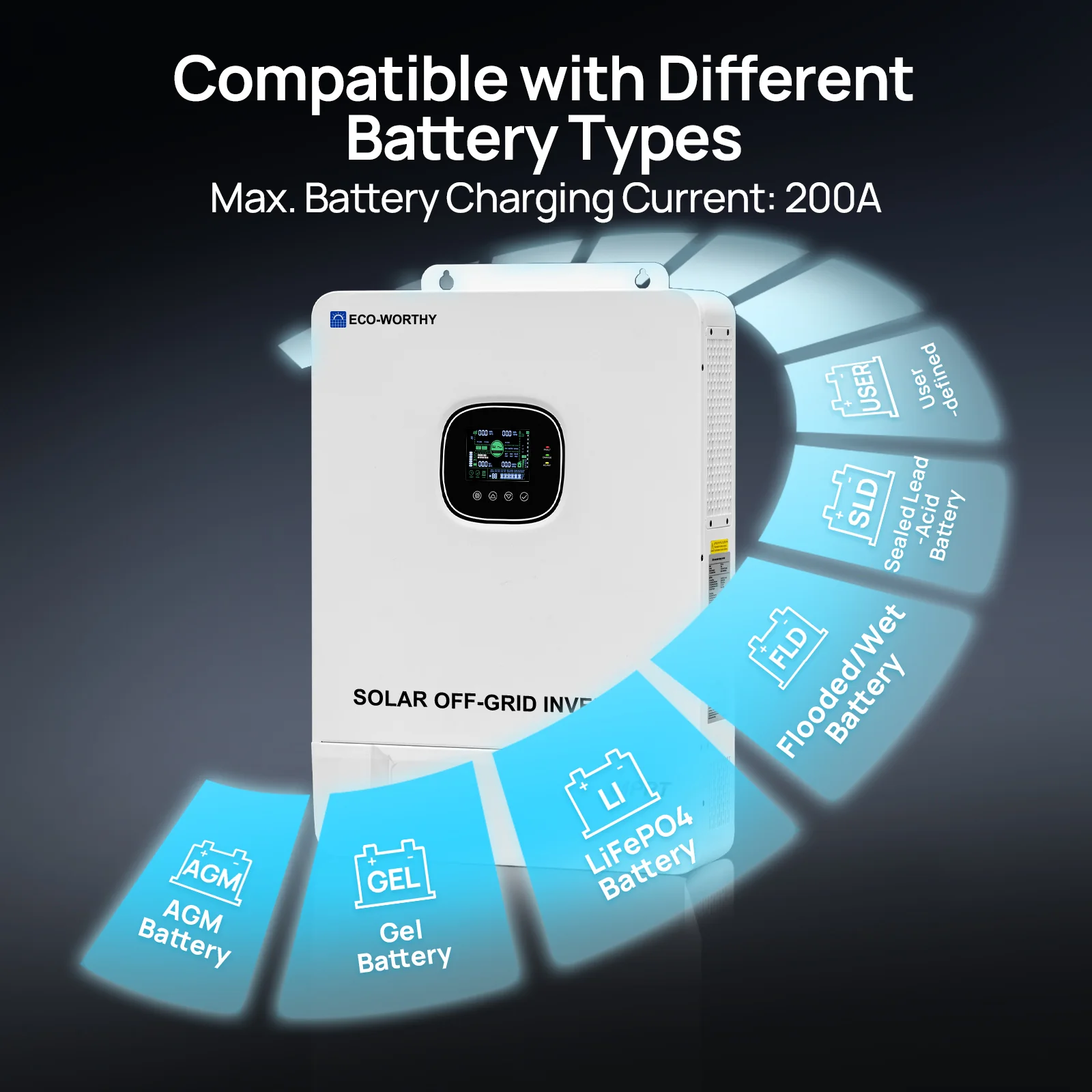

| Battery Type | Li-ion / Lead-Acid / User Defined | Y |
| Rated Battery Voltage | 48 Vdc | Y |
| Voltage Range | 40 to 60 Vdc | Y |
| Max. Grid/Generator Charging Current | 150A |
|
|

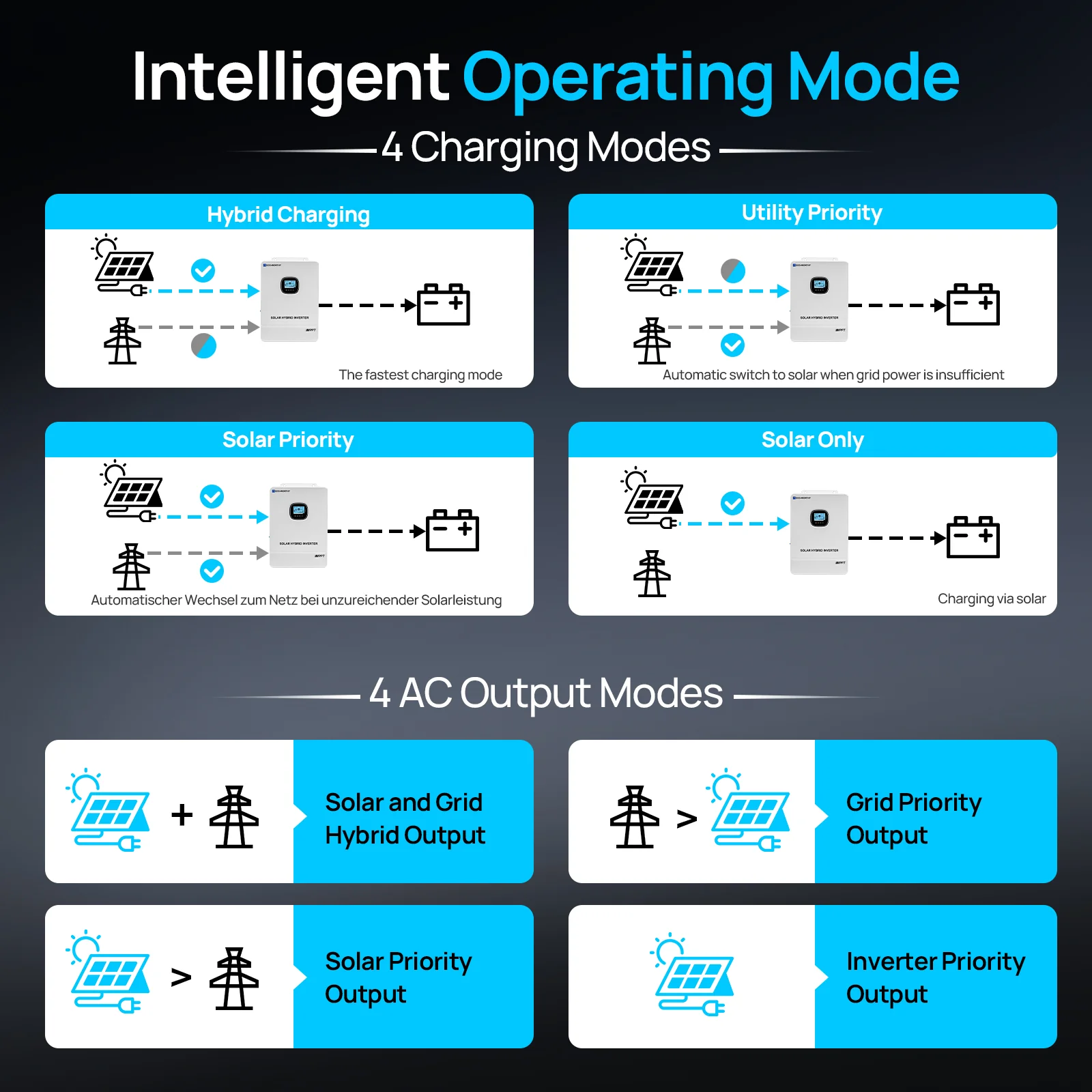

Max. Hybrid Charging Current |
200A | Y |
|
PV Input |
||
|

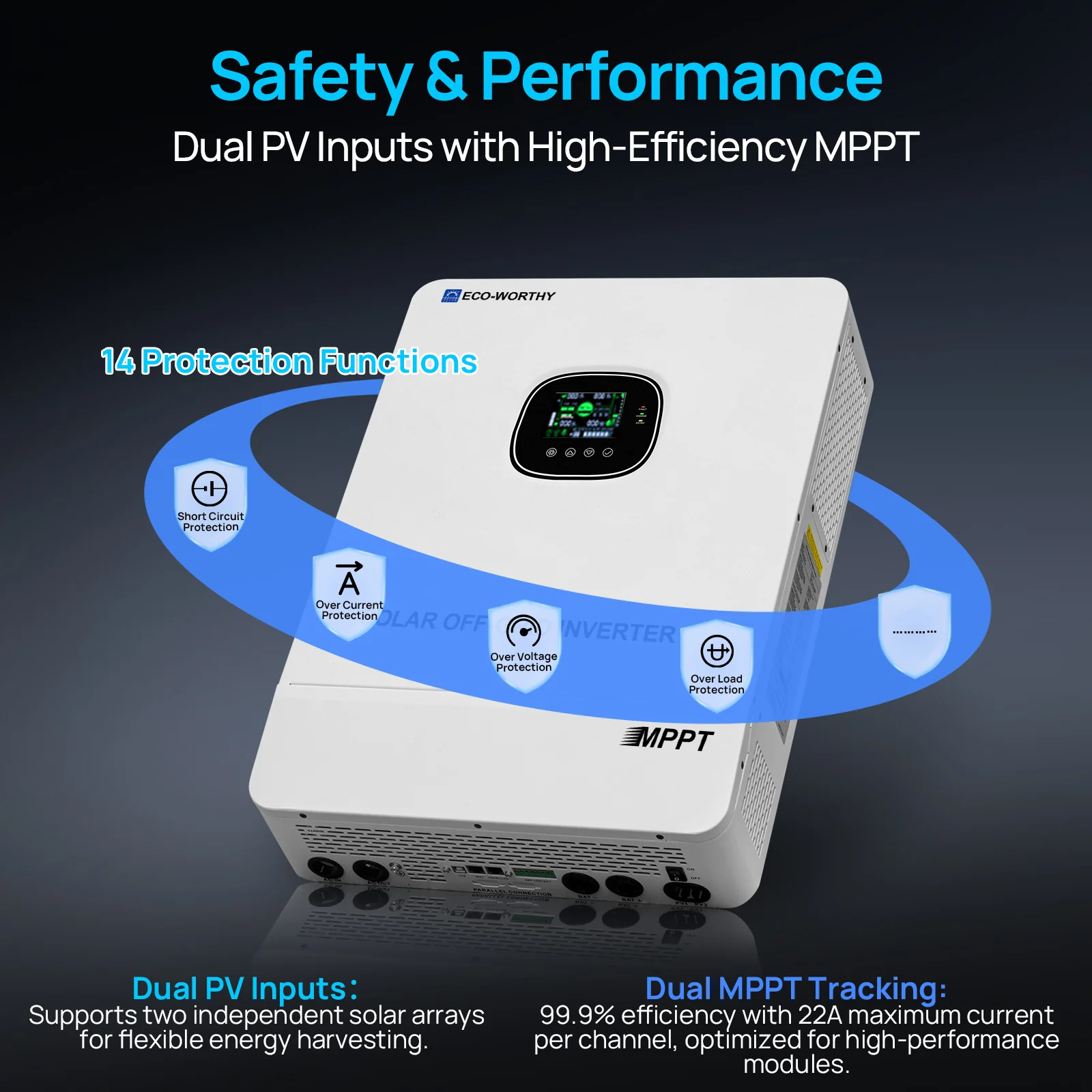

Number of MPPT Trackers |
2 | |
|
Max. PV Array Power |
5500W+5500W | |
|
Max. Input Current |
22A+22A | |
|
Max. Voltage of Open |
500Vdc/500Vdc | |
|
MPPT Voltage Range |
125 to 425 Vdc | |
|
Grid / Generator Input |
||
|
Input Voltage Range |
90-275Vac | |
|
Frequency Range |
50/60Hz | |
|
Bypass Overload Current |
63A | |
|
|
||
|
MPPT Tracking Efficiency |
99.9% | |
|
Max. Battery Inverter Efficiency |
92% | |
|
General |
||
|
Dimensions |
620x445x130mm | |
|
Weight |
27kg | |
|
Protection Degree |
Protection Degree IP20, Indoor Only | |
|
Operating Temperature |
Range -10~55℃, >45℃ derated |
|
|
Noise |
<60dB | |
|
Cooling Method |
Internal Fan | |
|
COMMUNICATION |
||
|
Embedded Interfaces |
RS485 / CAN / USB / Dry contact | Y |
|
External Modules |

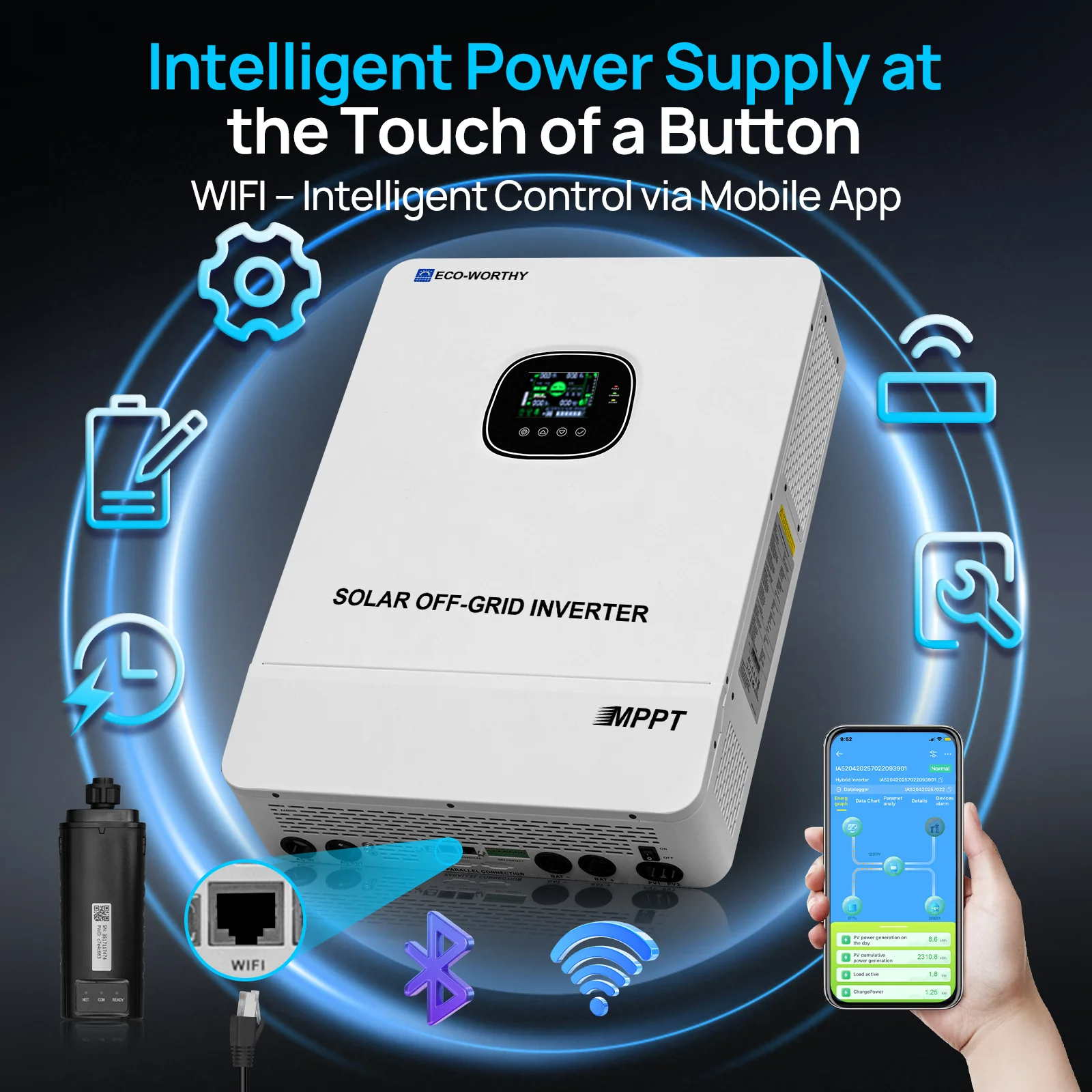

Wi-Fi / GPRS | Y |
Original: $1,700.15
-65%$1,700.15
$595.05Product Information
