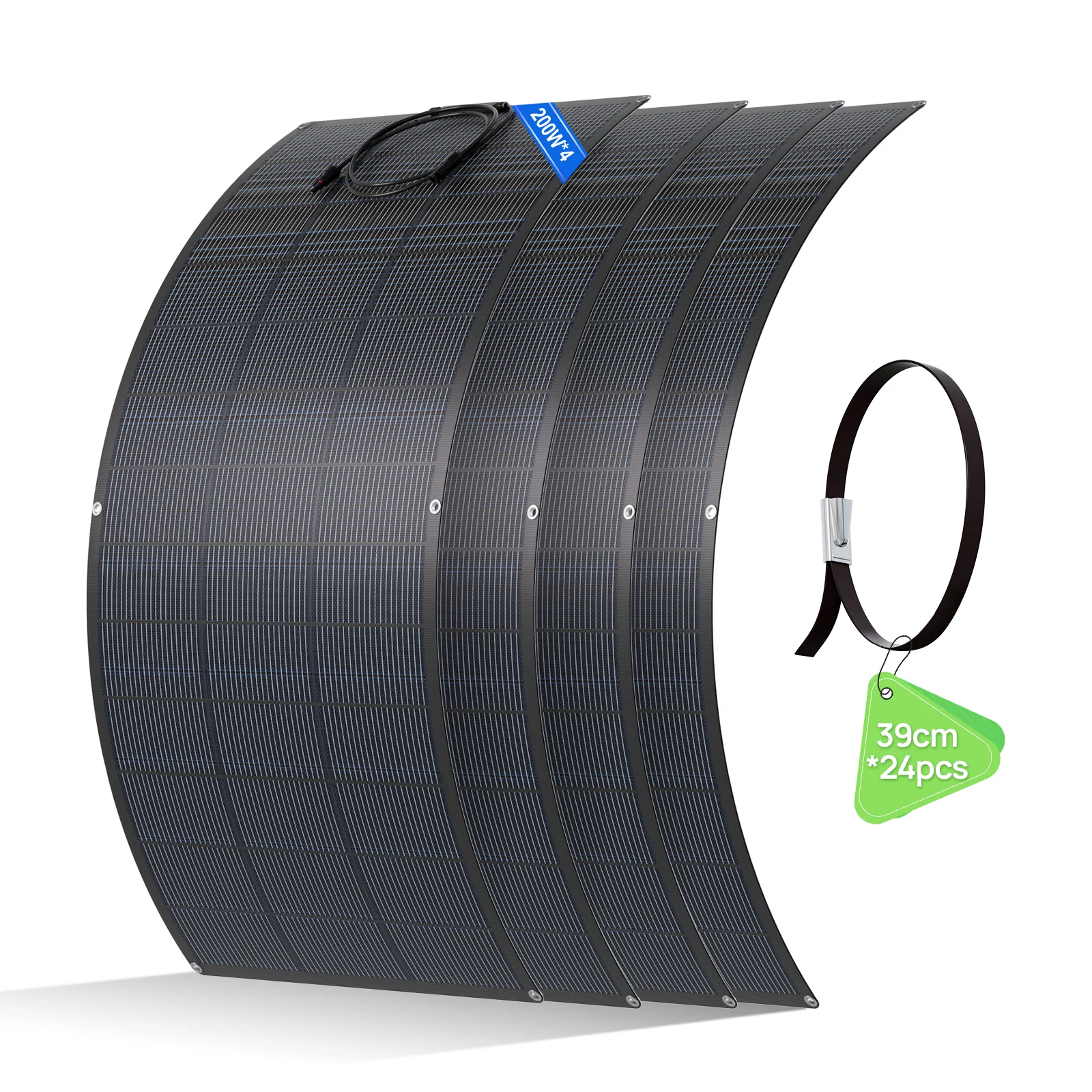

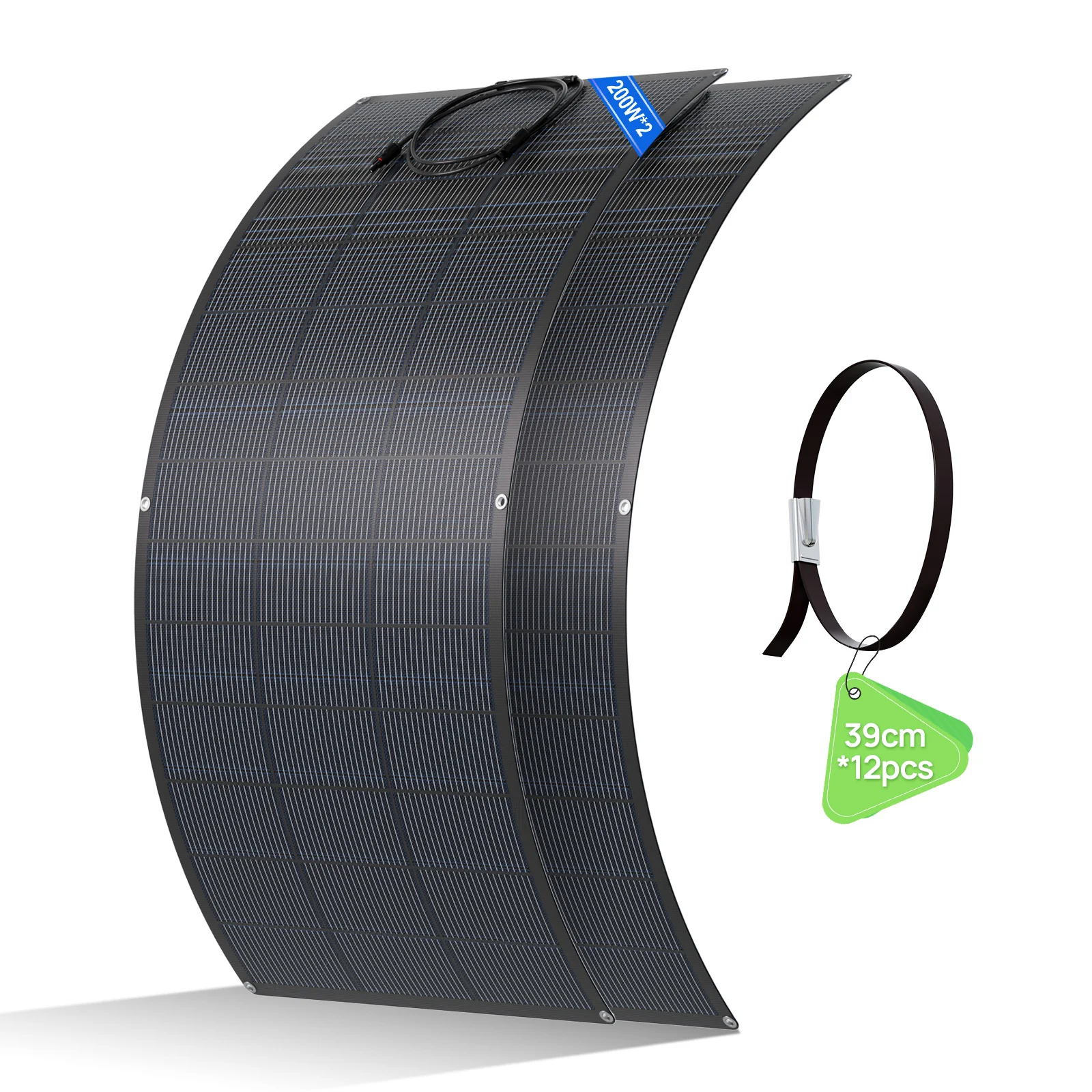

Eco-Worthy 200W 24V Flexible Mono Solar Panel
Eco-Worthy 200W 24V Flexible Mono Solar Panel
|
Maximum Power at STC*
: 200W |
Solar Cell: Monocrystalline |
| Maximum/Peak Voltage(Vmp): 25.1V | Open Circuit Voltage(Voc): 29.1V |
| Short circuit current: 8.21A |
Optimum Operating Current(Imp): 7.97A
|
|
Power tolerance: ±3%
|
Temperate coefficient of Isc: 0.065A+/-0.015%℃ |
| Temperate coefficient of Voc: (0.33V)/℃ |
Operating Temp. Range: －40℃～ +85℃
|
|
Output Cable: 12AWG(2.9ft)
|
Connector: 2.9ft Extension Cable With MC4 Connector
|

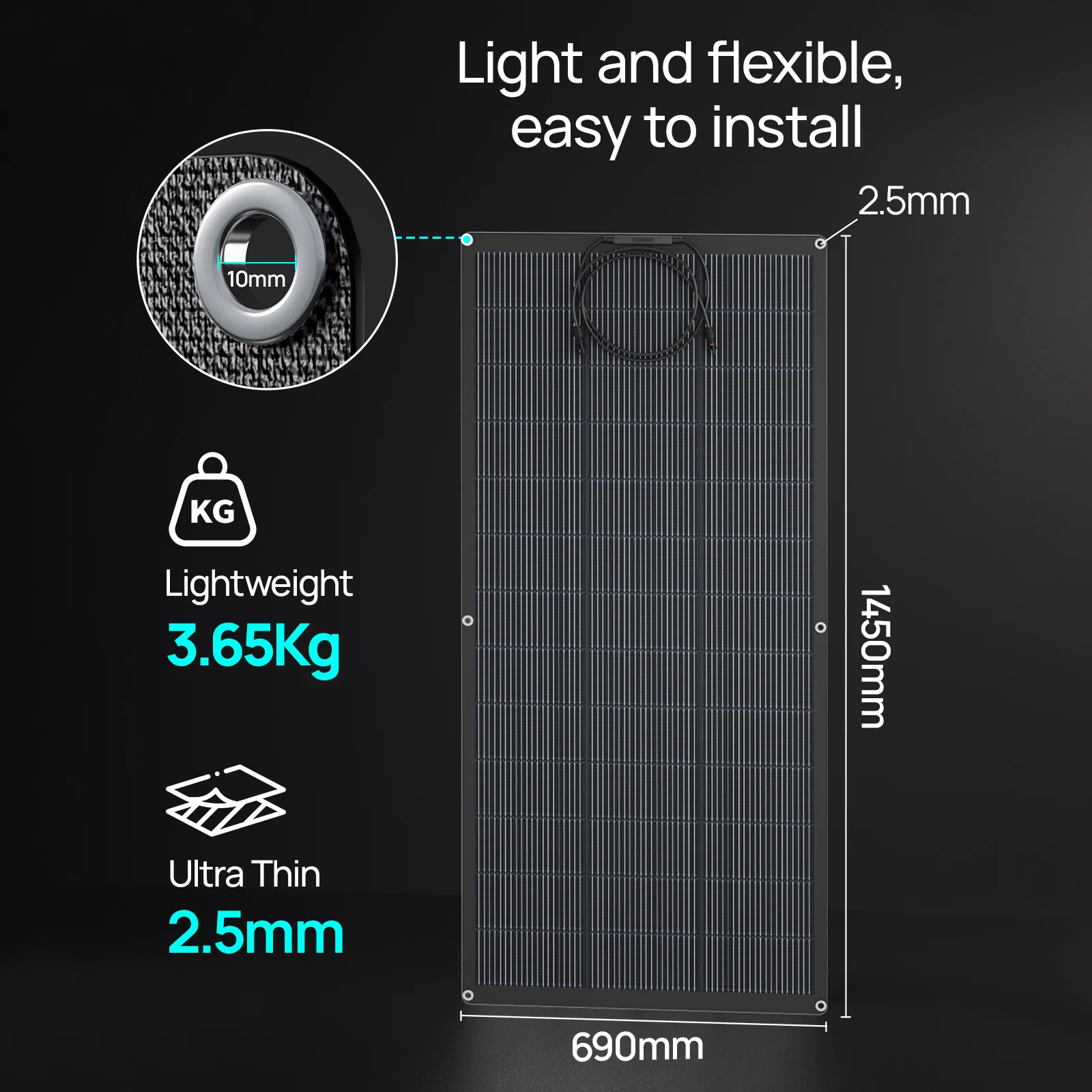

| Weight: 8.05 lbs (3.65kg) | Size: 57.09*27.17*0.10 in (1450*690*2.5mm) |
|
Module Efficiency: 20%
|
Maximum System Voltage: 500V
|
|
Maximum Series Fuse Rating: 8~10A
|
Number of Cells: 39（3*13）
|
|

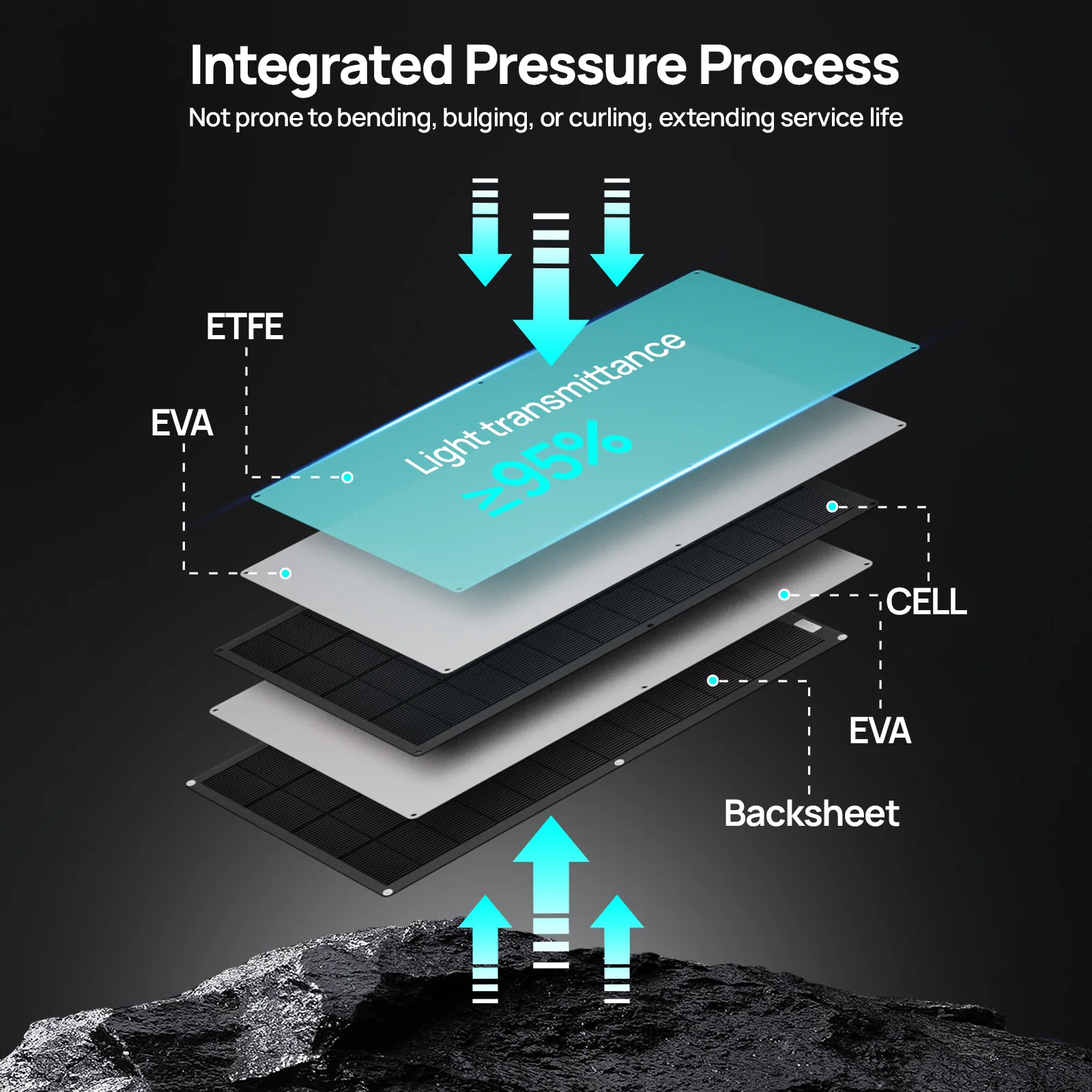

Material: ETFE
|
Nominal Operating Cell Temperature(NOCT): 25℃
|
|
Temperature Coefficient of Pmax:
(0.4W+/-0.05)/℃
|
Rated Current: 30A
|
|
Maximum Voltage: 1000V
|
Maximum AWG Size Range: 10AWG~14AWG
|
|
Temperature Range: -40℃~+85℃
|

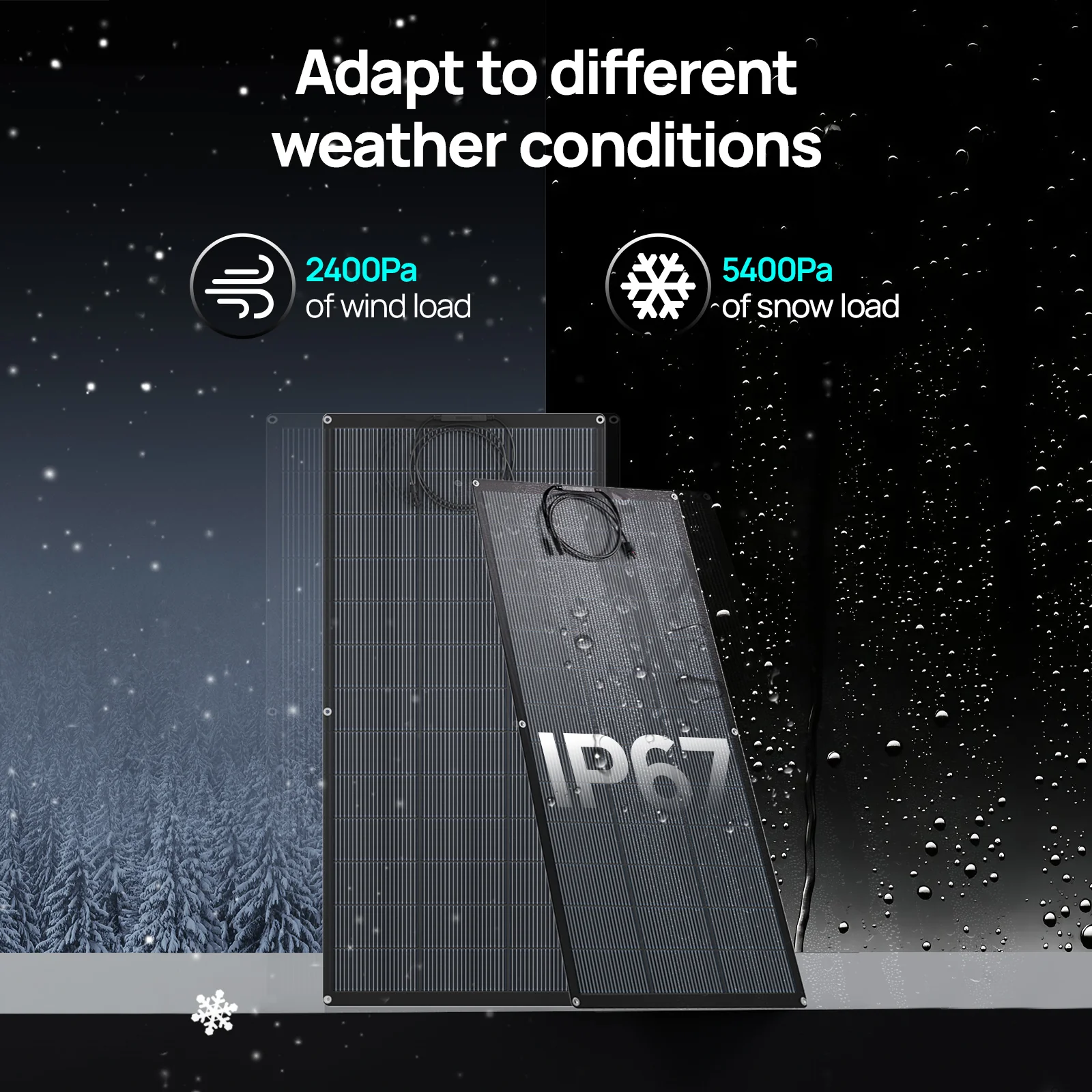

IP Rating: IP67
|
|
IP Rating: IP68
|
Diode Type: Blocking Bypass Diodes
|
Select Style
From $56.22
Original: $160.63
-65%Eco-Worthy 200W 24V Flexible Mono Solar Panel—
$160.63
$56.22Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Eco-Worthy 200W 24V Flexible Mono Solar Panel
|
Maximum Power at STC*
: 200W |
Solar Cell: Monocrystalline |
| Maximum/Peak Voltage(Vmp): 25.1V | Open Circuit Voltage(Voc): 29.1V |
| Short circuit current: 8.21A |
Optimum Operating Current(Imp): 7.97A
|
|
Power tolerance: ±3%
|
Temperate coefficient of Isc: 0.065A+/-0.015%℃ |
| Temperate coefficient of Voc: (0.33V)/℃ |
Operating Temp. Range: －40℃～ +85℃
|
|
Output Cable: 12AWG(2.9ft)
|
Connector: 2.9ft Extension Cable With MC4 Connector
|
| Weight: 8.05 lbs (3.65kg) | Size: 57.09*27.17*0.10 in (1450*690*2.5mm) |
|
Module Efficiency: 20%
|
Maximum System Voltage: 500V
|
|
Maximum Series Fuse Rating: 8~10A
|
Number of Cells: 39（3*13）
|
|
Material: ETFE
|
Nominal Operating Cell Temperature(NOCT): 25℃
|
|
Temperature Coefficient of Pmax:
(0.4W+/-0.05)/℃
|
Rated Current: 30A
|
|
Maximum Voltage: 1000V
|
Maximum AWG Size Range: 10AWG~14AWG
|
|
Temperature Range: -40℃~+85℃
|
IP Rating: IP67
|
|
IP Rating: IP68
|
Diode Type: Blocking Bypass Diodes
|
